Dragon Winch Dwt 22000 HD 24 V winch
5.0
1 review
Code: 009035
Official representative
54639₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw13008 |
| Бренд | Dragon Winch |
| Тягове зусилля | 10 tons |
| Довжина троса | 31 m |
| Напруга, вольтаж | 24 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Related products
Dragon Winch DWT 22000 HD tow truck winch
The manufacturer of traction devices Dragon Winch has developed a series of Truck winches specifically for installation on tow trucks, trucks and other special equipment. The DWT 22000 HD model has the highest maximum load among other mechanisms in the line - up to 10 tons.

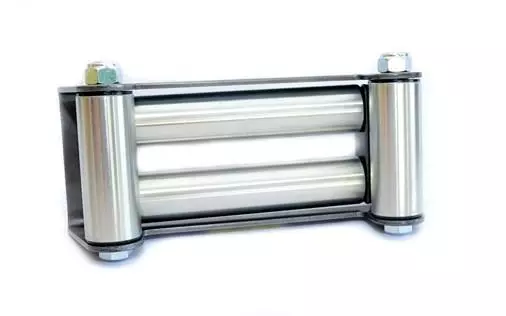

The 9.5 hp electric motor is powered by a 24 V battery. The device is equipped with a steel cable that reaches 31 meters in length. Roller guides are used to ensure that the rope is wound evenly on the drum.

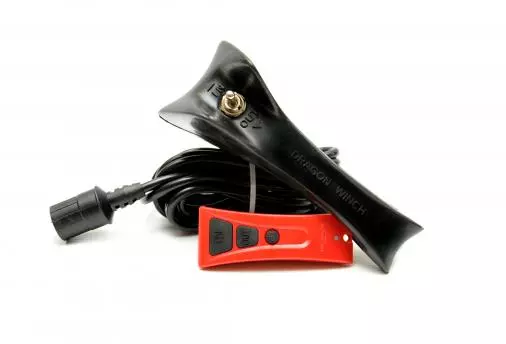

The set comes with 2 remote controls: a wired remote control and a radio remote control. In the event of a motor failure, a dynamic brake is activated to securely fix the object.
With a maximum load of 9979 kg, the cable winding speed is 1.7 m/min. The lower the load, the higher the speed.
The Vnedorognik.ua online store offers a wide range of winches for tow trucks and rescue vehicles of well-known brands.
Winding speed on the DWT 22000 HD winch and power (first turn of the cable on the drum)
| Load capacity | kg | 0 | 2721 | 5443 | 9979 |
| Speed of the machine | m / min | 4,5 | 3,7 | 3 | 1,7 |
| Current 24 volts | ampere | 42 | 112 | 232 | 305 |
Pulling force of DWT 22000 HD depending on the rope turn
| Turn | 1 | 2 | 3 | 4 | 5 | |
| The load | kg | 9979 | 7883 | 6786 | 5887 | 4989 |
| Cable length on the drum | м | 5,1 | 11,1 | 18,4 | 26,5 | 31 |

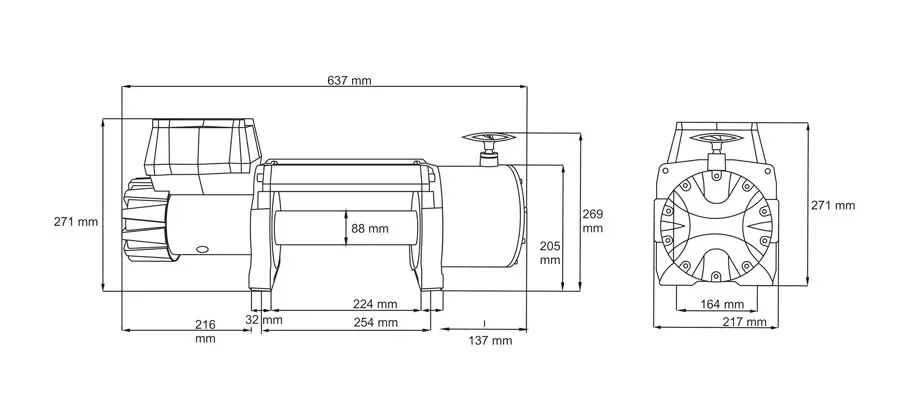

Dimensions of the DWT 22000 HD winch, mm:
| A | Length | 637 |
| B | Width | 217 |
| C | Height from the foundation to the highest point of the winch | 271 |
| D | Distance between holes (length) | 254 |
| E | Distance between holes (width) | 164 |
| F | Drum length (internal) | 224 |
| G | Drum diameter | 88 |
| H | Length of the motor | 216 |
| I | Length of the transmission | 137 |
| J | Height from the foundation to the surface of the gear edge | 205 |
| K | Height from the foundation to the surface of the gear lever edge | 269 |
| L | Thickness of the leg | 32 |
