Dragon Winch Dwh 3000 HD Synthetic
5.0
1 review
Code: 008897
Official representative
209€
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwh3000dhs |
| Бренд | Dragon Winch |
| Тягове зусилля | 1 t |
| Довжина троса | 15 m |
| Напруга, вольтаж | 12 |
| Трос | Синтетический |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Related products
Electric winch DWH 3000 HD synthetic
Even on an ATV, you can get stuck to the point where it will be impossible to get out on your own. In such a situation, a Dragon Winch winch will be the answer. This model has a maximum pulling force of 1.3 tons and is designed for use with light ATVs.
The electric motor is powered by a conventional 12 V car battery. It develops a power of 1.6 hp. Thanks to a planetary gearbox with a gear ratio of 138:1, the product boasts a fairly high winding speed.
The device is equipped with a 15-meter Kevlar cable. Compared to steel, it is lighter, does not break and is not covered with sharp burrs. Mounting the DWH 3000 HD on an ATV will not be difficult due to its light weight (10 kg).
The package includes:
- Synthetic cable;

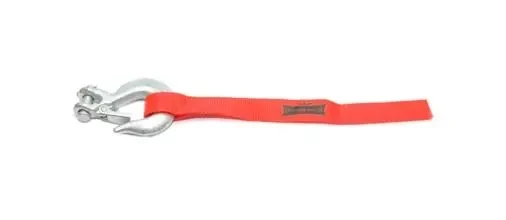

- Hook
- Key;

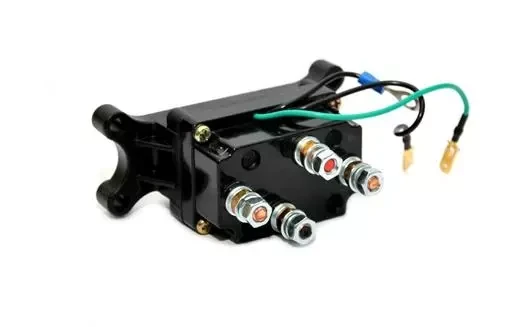

- Control unit;

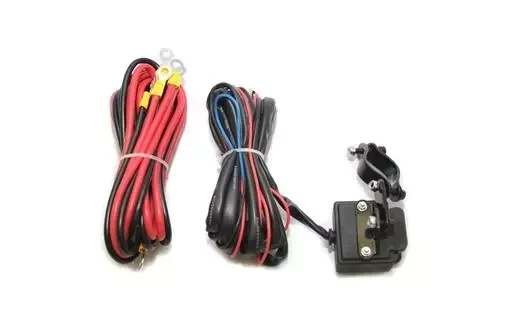

- Wired remote control with steering wheel mount;

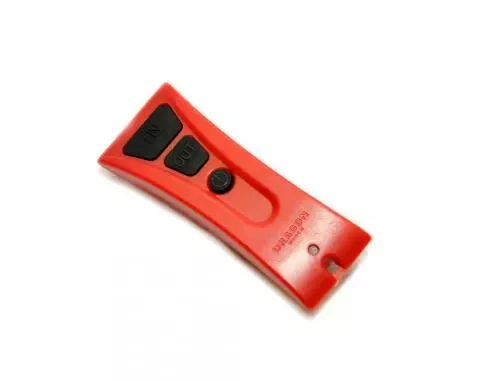

- Radio remote control;
- Installation platform and screws.
Before buying an electric winch for an ATV, you should consult with professionals. You can quickly get expert advice from us.
Cable laying speed on the drum and power (first turn)
| Load level | kg | 0 | 453 | 907 | 1360 |
| Broaching speed | m/min | 4,9 | 4,3 | 3,5 | 2,8 |
| Voltage, 12 V | А | 18,7 | 50 | 101 | 135 |
Pulling force depending on the wire rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 1360 | 1074 | 925 | 802 | 666 |
| Cable length on the drum | м | 2,6 | 5,4 | 8,6 | 12,4 | 15,0 |

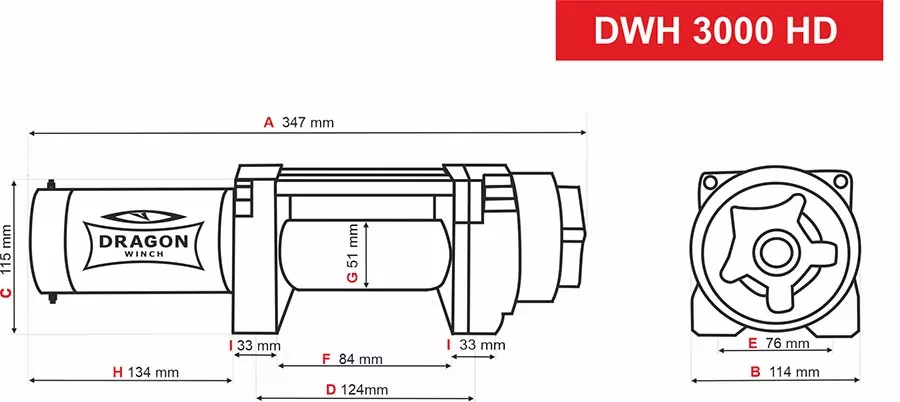

Winch parameters (mm)
| A | Length (total) | 347 |
| B | Width (total) | 114 |
| C | Height from base to highest point | 115 |
| D | Distance between mounting holes (length) | 124 |
| E | Distance between mounting holes (width) | 76 |
| F | Internal length of the drum | 84 |
| G | Drum (diameter) | 51 |
| H | Length of the motor | 134 |
| I | Leg thickness | 33 |
